Matrix Addressing

Overview

Finite-volume discretisation produces a sparse linear system \(A \mathbf{x} = \mathbf{b}\) where each row corresponds to a mesh cell and each non-zero off-diagonal entry corresponds to a face shared by two cells. NeoN assembles this system in three parts:

• Local CSR matrix — all cell-to-cell connections within the current MPI rank.

• Physical-boundary COO matrix — contributions from Dirichlet/Neumann boundaries.

• Processor-boundary COO matrix — contributions from faces shared with neighbouring MPI ranks.

The central object that links mesh topology to matrix storage is FaceToMatrixAddress (include/NeoN/linearAlgebra/faceToMatrixAddress.hpp). It stores three compact offset arrays (diagOffset, ownerOffset, neighbourOffset) that map every mesh face to a position inside the flat values array of the CSR matrix.

Further details:

• FaceToMatrixAddress

• LinearSystem

CSR Format

The local matrix is stored in Compressed Sparse Row (CSR) format via SparsityPattern (include/NeoN/linearAlgebra/sparsityPattern.hpp):

Vector<IndexType> rowOffs_;   // size nCells + 1
Vector<IndexType> colIdxs_;   // size nnz (number of non-zeros)
// values stored separately in Matrix::values_

rowOffs[i+1] - rowOffs[i] gives the number of non-zeros in row i. Iterating over row i:

for (localIdx k = rowOffs[i]; k < rowOffs[i+1]; ++k)
{
    // colIdxs[k] is the column index
    // values[k]  is A[i, colIdxs[k]]
}

Row Layout: Lower | Diagonal | Upper

Within every row the non-zero entries are stored in the order:

Row i: [ A[i,j0] ... A[i,j_{k-1}] | A[i,i] | A[i,j_{k+1}] ... A[i,j_{m}] ]
       |<----- lower (j < i) ----->|<-diag->|<----- upper (j > i) -------->|

diagOffset[i] equals the count of lower-triangular entries in row i, which is also the number of internal faces for which cell i is the neighbour (i.e. has a larger index than the owner).

Face Addressing Arrays

FaceToMatrixAddress stores three uint8_t arrays:

Array	Size	Meaning
diagOffset[celli]	nCells	Offset of the diagonal entry within cell celli’s row.
ownerOffset[facei]	nInternalFaces	Offset within the owner cell’s row for the column pointing at the neighbour cell. Gives the upper-triangular entry \(A[\text{own},\text{nei}]\).
neighbourOffset[facei]	nInternalFaces	Offset within the neighbour cell’s row for the column pointing at the owner cell. Gives the lower-triangular entry \(A[\text{nei},\text{own}]\).

Why ownerOffset → upper triangular

By construction, NeoN guarantees owner[f] < neighbour[f] for every internal face f. This means that in the owner’s row (row index = own), the column that points to the neighbour has column index nei > own — which is the upper triangle. Conversely, in the neighbour’s row (row index = nei), the column pointing back to the owner has column index own < nei — which is the lower triangle.

This invariant is what makes ownerOffset the upper-triangular offset and neighbourOffset the lower-triangular offset.

Helper functions (faceToMatrixAddress.hpp) convert offsets to flat values indices:

// Flat index of diagonal for cell i:
//   diagIdx(celli) = rowOffs[celli] + diagOffset[celli]
localIdx diagIdx(localIdx celli) const;

// Flat index of A[own, nei]  (upper triangular):
//   upperIdx(own, f) = rowOffs[own] + ownerOffset[f]
//   own < nei by construction → column index nei > row index own
localIdx upperIdx(localIdx own, localIdx faceIdx) const;

// Flat index of A[nei, own]  (lower triangular):
//   lowerIdx(nei, f) = rowOffs[nei] + neighbourOffset[f]
//   nei > own by construction → column index own < row index nei
localIdx lowerIdx(localIdx nei, localIdx faceIdx) const;

8-Cell 2-Rank Example

Mesh Topology

Consider a 1-D mesh with 4 cells on rank 0 (C0–C3) and 4 cells on rank 1 (C4–C7):

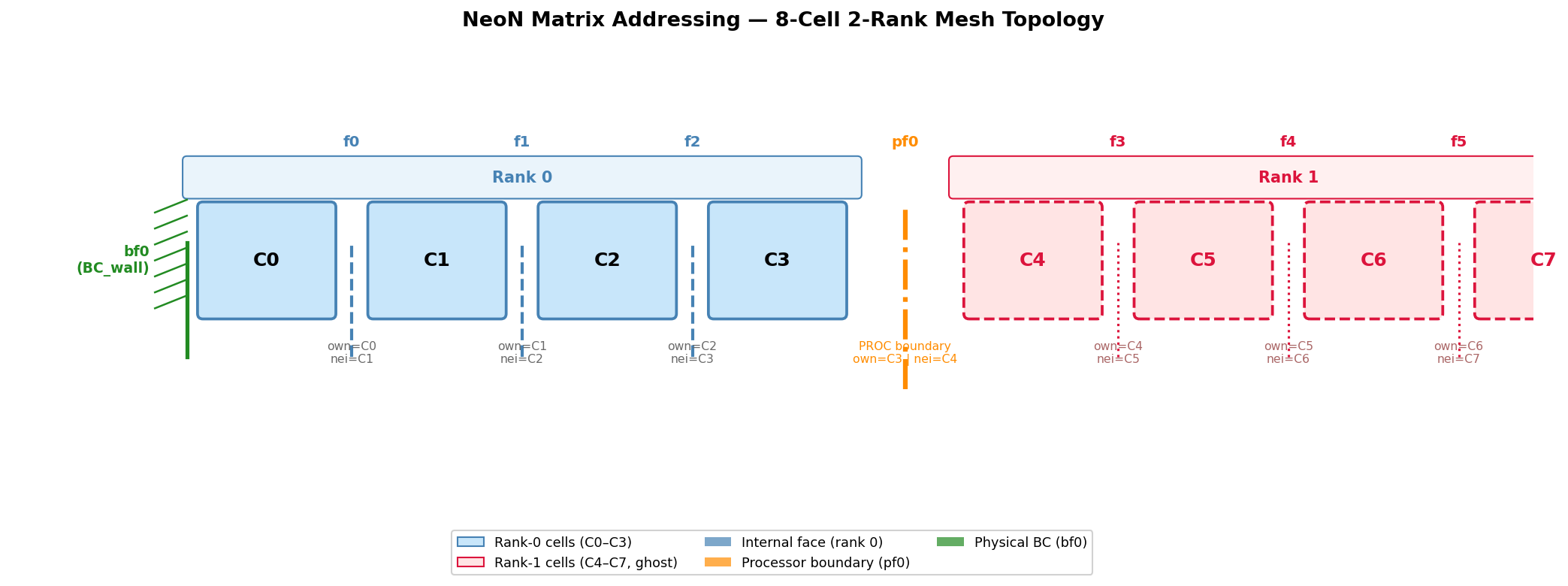

Generated by generate_matrix_addressing_figure.py. Rank-0 cells (blue) and rank-1 cells (red, shown as ghost). Internal faces f0–f2 are on rank 0; pf0 is the processor boundary; bf0 is a wall.

Face list for rank 0:

• Internal faces (rank 0): f0 (own=C0, nei=C1), f1 (own=C1, nei=C2), f2 (own=C2, nei=C3)

• Physical boundary face: bf0 — left wall of C0

• Processor boundary face: pf0 — right side of C3, shared with rank 1 (own=C3, remote=C4)

The local matrix on rank 0 has shape 4×4 with 10 non-zeros (2 entries per interior face + 4 diagonals).

CSR Non-zero Pattern

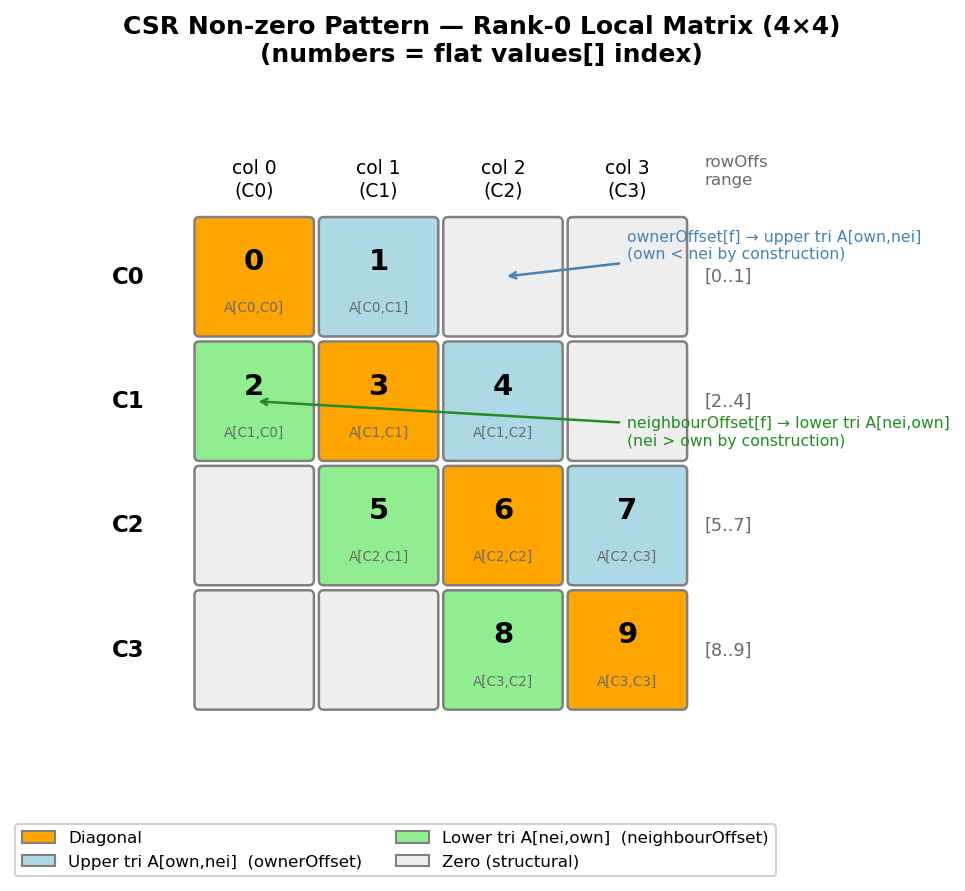

Generated by generate_matrix_addressing_figure.py. Numbers show the flat values[] index. Orange = diagonal, blue = upper triangular A[own,nei] (via ownerOffset), green = lower triangular A[nei,own] (via neighbourOffset).

Construction Walkthrough

setSparsityPatternFaceToMatrixAddressSerial (src/linearAlgebra/faceToMatrixAddress.cpp) builds the arrays in five passes:

Step 1 — count non-zeros per cell (initialised to 1 for the diagonal):

nFacesPerCell = [1, 1, 1, 1]
f0: nFacesPerCell[C0]++, nFacesPerCell[C1]++  → [2, 2, 1, 1]
f1: nFacesPerCell[C1]++, nFacesPerCell[C2]++  → [2, 3, 2, 1]
f2: nFacesPerCell[C2]++, nFacesPerCell[C3]++  → [2, 3, 3, 2]

Step 2 — compute row offsets (exclusive prefix sum):

rowOffs = [0, 2, 5, 8, 10]

Step 3 — assign lower-triangular positions (nFacesPerCell reset to 0):

For each face, the neighbour cell receives a new position for the column=own entry. Because nei > own, this column is in the lower triangle of the neighbour’s row:

f0: segIdx = nFacesPerCell[C1]++ = 0 → neighbourOffset[f0] = 0, colIdx[2+0] = C0
f1: segIdx = nFacesPerCell[C2]++ = 0 → neighbourOffset[f1] = 0, colIdx[5+0] = C1
f2: segIdx = nFacesPerCell[C3]++ = 0 → neighbourOffset[f2] = 0, colIdx[8+0] = C2

Step 4 — place diagonal:

C0: diagOffset[C0] = nFacesPerCell[C0] = 0, colIdx[0+0] = C0, nFacesPerCell[C0]++ = 1
C1: diagOffset[C1] = nFacesPerCell[C1] = 1, colIdx[2+1] = C1, nFacesPerCell[C1]++ = 2
C2: diagOffset[C2] = nFacesPerCell[C2] = 1, colIdx[5+1] = C2, nFacesPerCell[C2]++ = 2
C3: diagOffset[C3] = nFacesPerCell[C3] = 1, colIdx[8+1] = C3, nFacesPerCell[C3]++ = 2

Step 5 — assign upper-triangular positions (positions start after the diagonal):

For each face, the owner cell receives a new position for the column=nei entry. Because own < nei, this column is in the upper triangle of the owner’s row:

f0: segIdx = nFacesPerCell[C0]++ = 1 → ownerOffset[f0] = 1, colIdx[0+1] = C1
f1: segIdx = nFacesPerCell[C1]++ = 2 → ownerOffset[f1] = 2, colIdx[2+2] = C2
f2: segIdx = nFacesPerCell[C2]++ = 2 → ownerOffset[f2] = 2, colIdx[5+2] = C3

Resulting Arrays

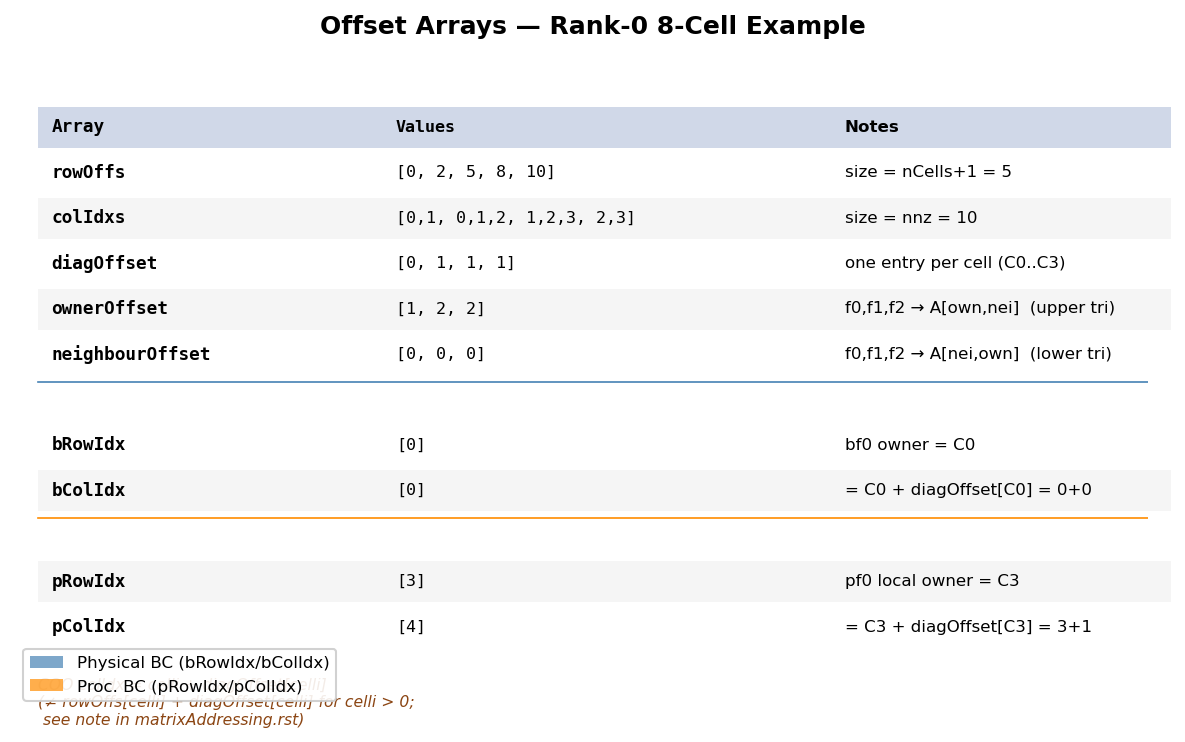

Generated by generate_matrix_addressing_figure.py.

Array	Values	Notes
rowOffs	[0, 2, 5, 8, 10]	size = nCells+1 = 5
colIdxs	[0,1, 0,1,2, 1,2,3, 2,3]	size = nnz = 10
diagOffset	[0, 1, 1, 1]	one entry per cell (C0..C3)
ownerOffset	[1, 2, 2]	f0,f1,f2 → upper tri A[own,nei]
neighbourOffset	[0, 0, 0]	f0,f1,f2 → lower tri A[nei,own]

Values Array Layout

Flat index	Row (cell)	Column (cell)	Matrix entry
0	C0	C0	A[C0,C0] — diagonal
1	C0	C1	A[C0,C1] — upper triangular (f0, via ownerOffset)
2	C1	C0	A[C1,C0] — lower triangular (f0, via neighbourOffset)
3	C1	C1	A[C1,C1] — diagonal
4	C1	C2	A[C1,C2] — upper triangular (f1, via ownerOffset)
5	C2	C1	A[C2,C1] — lower triangular (f1, via neighbourOffset)
6	C2	C2	A[C2,C2] — diagonal
7	C2	C3	A[C2,C3] — upper triangular (f2, via ownerOffset)
8	C3	C2	A[C3,C2] — lower triangular (f2, via neighbourOffset)
9	C3	C3	A[C3,C3] — diagonal

Verification with Helper Functions

Using the helper functions:

// Diagonal access
diagIdx(C0) = rowOffs[0] + diagOffset[0] = 0 + 0 = 0  → values[0] = A[C0,C0] ✓
diagIdx(C1) = rowOffs[1] + diagOffset[1] = 2 + 1 = 3  → values[3] = A[C1,C1] ✓
diagIdx(C2) = rowOffs[2] + diagOffset[2] = 5 + 1 = 6  → values[6] = A[C2,C2] ✓
diagIdx(C3) = rowOffs[3] + diagOffset[3] = 8 + 1 = 9  → values[9] = A[C3,C3] ✓

// Upper triangular A[own, nei] — via upperIdx(own, face)
upperIdx(C0, f0) = rowOffs[0] + ownerOffset[f0] = 0 + 1 = 1  → values[1] = A[C0,C1] ✓
upperIdx(C1, f1) = rowOffs[1] + ownerOffset[f1] = 2 + 2 = 4  → values[4] = A[C1,C2] ✓
upperIdx(C2, f2) = rowOffs[2] + ownerOffset[f2] = 5 + 2 = 7  → values[7] = A[C2,C3] ✓

// Lower triangular A[nei, own] — via lowerIdx(nei, face)
lowerIdx(C1, f0) = rowOffs[1] + neighbourOffset[f0] = 2 + 0 = 2  → values[2] = A[C1,C0] ✓
lowerIdx(C2, f1) = rowOffs[2] + neighbourOffset[f1] = 5 + 0 = 5  → values[5] = A[C2,C1] ✓
lowerIdx(C3, f2) = rowOffs[3] + neighbourOffset[f2] = 8 + 0 = 8  → values[8] = A[C3,C2] ✓

LDU to CSR Correspondence

OpenFOAM’s classical LDU format stores three separate arrays: diag, lower, and upper. NeoN encodes the same information in a single values array. The mapping for the 4-cell rank-0 example is:

LDU concept	NeoN access	Flat index
diag[C0]	values[diagIdx(C0)]	0
upper[f0] = A[C0,C1]	values[upperIdx(C0, f0)]	1
lower[f0] = A[C1,C0]	values[lowerIdx(C1, f0)]	2
diag[C1]	values[diagIdx(C1)]	3
upper[f1] = A[C1,C2]	values[upperIdx(C1, f1)]	4
lower[f1] = A[C2,C1]	values[lowerIdx(C2, f1)]	5
diag[C2]	values[diagIdx(C2)]	6
upper[f2] = A[C2,C3]	values[upperIdx(C2, f2)]	7
lower[f2] = A[C3,C2]	values[lowerIdx(C3, f2)]	8
diag[C3]	values[diagIdx(C3)]	9

The Laplacian kernel illustrates the canonical addressing pattern (symmetric operator, flux = deltaCoeffs * gamma * magSf > 0):

auto own = faceOwner[facei];
auto nei = faceNeighbour[facei];

// A[nei, own] — lower triangular, in neighbour's row:
values[rowOffs[nei] + neighbourOffset[facei]] += flux;
// values[lowerIdx(nei, facei)] += flux;   // equivalent via matrixIterator

// A[own, nei] — upper triangular, in owner's row:
values[rowOffs[own] + ownerOffset[facei]] += flux;
// values[upperIdx(own, facei)] += flux;   // equivalent via matrixIterator

// Diagonal — flux leaves each cell (symmetric → same magnitude for own and nei):
Kokkos::atomic_sub(&values[rowOffs[own] + diagOffset[own]], flux);
Kokkos::atomic_sub(&values[rowOffs[nei] + diagOffset[nei]], flux);

The divergence operator uses the same addressing but different signs on the off-diagonals and diagonal (asymmetric); see Operator Assembly for details.

Physical Boundary Contributions (COO)

A physical boundary face (wall, inlet, outlet, …) touches only one cell — the owner. Its contribution modifies the diagonal of that cell’s row and the right-hand side. No off-diagonal coupling is introduced, so a full CSR row is unnecessary.

NeoN stores physical boundary contributions in a CooSparsityPattern (include/NeoN/linearAlgebra/sparsityPattern.hpp):

• rowOffs[bfacei] = owner cell index

• colIdx[bfacei] = celli + diagOffset[celli] (see note below)

Built in setBoundarySparsityPattern (faceToMatrixAddress.cpp):

// For boundary face bfacei touching owner cell celli:
bColIdx[bfacei] = celli + diagOffset[celli];
bRowIdx[bfacei] = celli;

For the 8-cell example (bf0 → C0):

bRowIdx = [0]    (owner cell = C0 = 0)
bColIdx = [0]    (= C0 + diagOffset[C0] = 0 + 0 = 0)

Note

The colIdx formula uses celli + diagOffset[celli], not the full flat CSR index rowOffs[celli] + diagOffset[celli]. The two are equal only for cell 0. This value is a bookkeeping tag, not a direct index into matrix_.values(). Physical boundary contributions are written directly to the CSR diagonal inside the operator kernels (e.g. computeLaplacianBoundImpl); the COO boundaryMatrix_ tracks the face-to-cell mapping for other purposes. Do not use bColIdx as a flat CSR offset.

Processor Boundary Contributions (COO)

A processor boundary face couples a cell on the local rank to a cell on a neighbouring rank. The remote cell’s value is not stored locally; it arrives via MPI. After the exchange, the received contribution is subtracted from the diagonal of the local owner cell.

The sparsity is again COO, built in setProcBoundarySparsityPattern (faceToMatrixAddress.cpp):

// For proc-boundary face bfacei touching local cell celli:
pColIdx[bfacei] = celli + diagOffset[celli];
pRowIdx[bfacei] = celli;

For the 8-cell example (pf0 → C3):

pRowIdx = [3]    (owner cell = C3 = 3)
pColIdx = [4]    (= C3 + diagOffset[C3] = 3 + 1 = 4)

The MPI exchange happens in LinearSystem::communicate() (linearSystem.hpp):

1. Copy processor-boundary values to send buffer.

2. MPI_Alltoallv exchanges contributions with all neighbouring ranks.

3. Subtract received values from the local CSR matrix diagonal via sub(recvBuffer, boundaryMatrixMap, matrix_.values()).

Note

pColIdx = celli + diagOffset[celli] is a bookkeeping tag (not a flat CSR offset), same as the physical-boundary case. LinearSystem::communicate() does not use this colIdx directly; instead it calls computeRowToDiagonalMap which correctly resolves rowOffs[cell] + diagOffset[cell] at scatter time. CommunicationPattern::boundaryMapVector is currently unused (see FIXME in unstructuredMesh.cpp).

How to Access Values in Practice

auto mi     = ls.faceToMatrixAddress();    // FaceToMatrixAddress
auto values = ls.matrix().values().view(); // flat values array

// 1. Diagonal of cell i:
values[mi->diagIdx(i)] += contribution;

// 2. A[own, nei] (upper triangular) for internal face f:
values[mi->upperIdx(own, f)] += contribution;
// Equivalent direct form: values[rowOffs[own] + ownerOffset[f]] += contribution;

// 3. A[nei, own] (lower triangular) for internal face f:
values[mi->lowerIdx(nei, f)] += contribution;
// Equivalent direct form: values[rowOffs[nei] + neighbourOffset[f]] += contribution;

// 4. Physical boundary contribution:
//    Operator kernels (e.g. computeLaplacianBoundImpl) write directly to
//    the CSR diagonal and RHS — there is no automatic scatter from boundaryMatrix.
auto own = faceCells[bcFaceIdx];
Kokkos::atomic_sub(&values[mi->diagIdx(own)], diagonalContribution);
rhs[own] -= rhsContribution;
