Run your first NeoFOAM case

Run the bundled pitzDaily benchmark end-to-end with the incompressibleFluid solver and plot the final velocity field.

Imports

import contextlib
import subprocess

import pyvista as pv

from neofoam.solver import incompressibleFluid
from neofoam.tutorial import clone_case

Clone the bundled case

clone_case copies the case to a fresh tempdir and restores 0.orig/ to 0/ (what Allrun normally does). The .foam marker satisfies pyvista’s OpenFOAMReader at the end.

case = clone_case("pitzDaily")
(case / "pitzDaily.foam").touch()
print(f"working copy: {case}")

working copy: /tmp/neofoam_fsuirz3w/pitzDaily

Generate the mesh

blockMesh reads system/blockMeshDict and writes constant/polyMesh/.

subprocess.run(["blockMesh", "-case", str(case)], check=True)
assert (case / "constant" / "polyMesh" / "points").exists()

Run the solver

Equivalent to running neofoam solver incompressiblefluid from the shell — that CLI command calls the same run underneath. We chdir into the case the way an Allrun script does.

with contextlib.chdir(case):
    incompressibleFluid.run(["."])

Plot the final velocity field

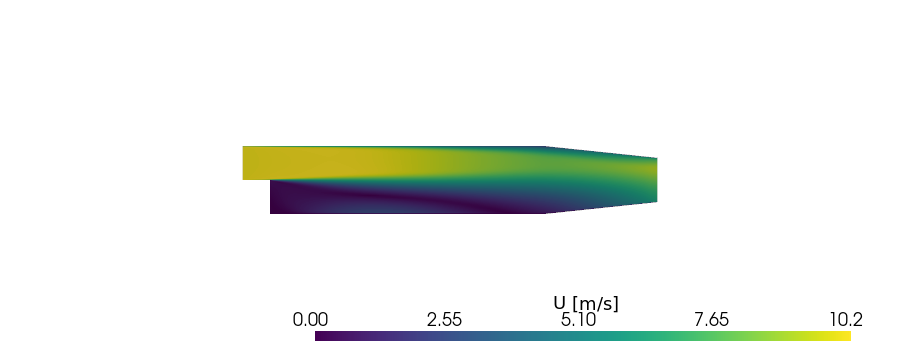

pyvista colours by the magnitude of U automatically. A flat-blue plot or zero-range colour bar would mean the solve didn’t produce data — re-check the log in that case.

reader = pv.OpenFOAMReader(str(case / "pitzDaily.foam"))
reader.set_active_time_value(reader.time_values[-1])
mesh = reader.read()["internalMesh"]

pl = pv.Plotter(off_screen=True, window_size=(900, 360))
pl.add_mesh(
    mesh,
    scalars="U",
    cmap="viridis",
    scalar_bar_args={"title": "|U| [m/s]"},
)
pl.view_xy()
pl.camera.zoom(1.2)
pl.show()
