Visualize the operation DAG¶

When a solver’s operation order doesn’t match what you expect, render the dependency graph and inspect it directly. The graph package exposes one function for the common case and a pyvis writer for interactive HTML.

Render a single domain’s DAG to HTML¶

After runtime.execution_graph() produces a StepBuilder / OperationCollection, you can read each operation’s OperationMetadata and feed it to dependency_dag(). Open dag.html in a browser. Nodes carry the op_name, operation_number, and shape / color hints from the metadata; edges follow the resolved depends_on / before relationships.

from typing import Any

import matplotlib.pyplot as plt
import networkx as nx

from neofoam.framework.graph import (
    build_dependency_digraph,
    dependency_dag,
    digraph_to_pyvis_html,
    validate_dependency_graph,
)


def render_solver_dag(runtime: Any, out: str = "dag.html") -> None:
    builder, model_ops = runtime.execution_graph()
    metas_by_domain = {
        "main": [op.metadata for op in builder.operations.ops]
        + [op.metadata for op in model_ops.ops],
    }
    graph = dependency_dag(metas_by_domain)
    digraph_to_pyvis_html(graph, out)

A worked example¶

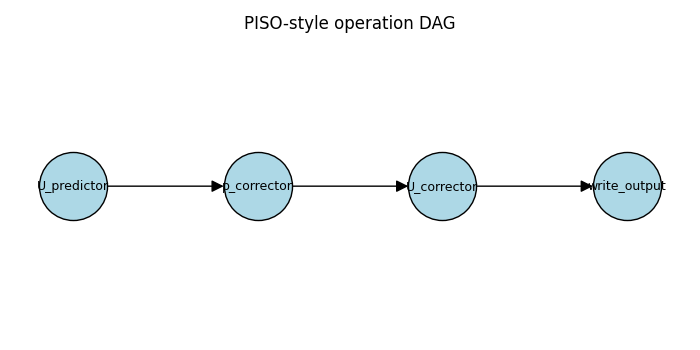

Build a small PISO-style dependency graph and render it two ways: inline as a static figure (so it appears below this cell on the docs page), and as an interactive dag.html you can open in a browser to drag nodes and inspect edges. The same networkx.DiGraph feeds both renderers.

graph = build_dependency_digraph(
    {
        "U_predictor": [],
        "p_corrector": ["U_predictor"],
        "U_corrector": ["p_corrector"],
        "write_output": ["U_corrector"],
    }
)

fig, ax = plt.subplots(figsize=(7, 3.5))
layout = {
    "U_predictor": (0, 0),
    "p_corrector": (1, 0),
    "U_corrector": (2, 0),
    "write_output": (3, 0),
}
nx.draw(
    graph,
    pos=layout,
    ax=ax,
    with_labels=True,
    node_color="lightblue",
    node_size=2400,
    edgecolors="black",
    font_size=9,
    arrowsize=18,
)
ax.set_title("PISO-style operation DAG")
fig.tight_layout()

# Same graph, written to an interactive pyvis page.
digraph_to_pyvis_html(graph, "dag.html")

Inspect without rendering¶

The intermediate networkx.DiGraph is plain networkx — you can call graph.predecessors(name), graph.successors(name), or nx.find_cycle(graph) directly. Useful inside tests or while debugging.

assert list(graph.successors("U_predictor")) == ["p_corrector"]
print("successors of U_predictor:", list(graph.successors("U_predictor")))

successors of U_predictor: ['p_corrector']

Validate before you resolve¶

If you only want to know whether a graph is well-formed (no duplicates, no missing dependencies, no cycles) use validate_dependency_graph() — it returns a GraphValidationReport you can inspect without raising.

report = validate_dependency_graph(
    node_names=["A", "B", "C"],
    dependencies_by_node={"A": [], "B": ["A"], "C": ["B", "missing"]},
)
if not report.is_valid:
    for diagnostic in report.diagnostics:
        print(diagnostic.code, diagnostic.message)

missing_dependency InitStep 'C' depends on 'missing', but 'missing' was not found
